TMCR2T12 картридж M200 2 температурні входи-розширення I/O
-10%
- В наявності
- Код: TMCR2TI2
3 540,04 ₴
3 186,03 ₴
Компанія тимчасово не приймає замовлення
повернення товару протягом 14 днів за домовленістю

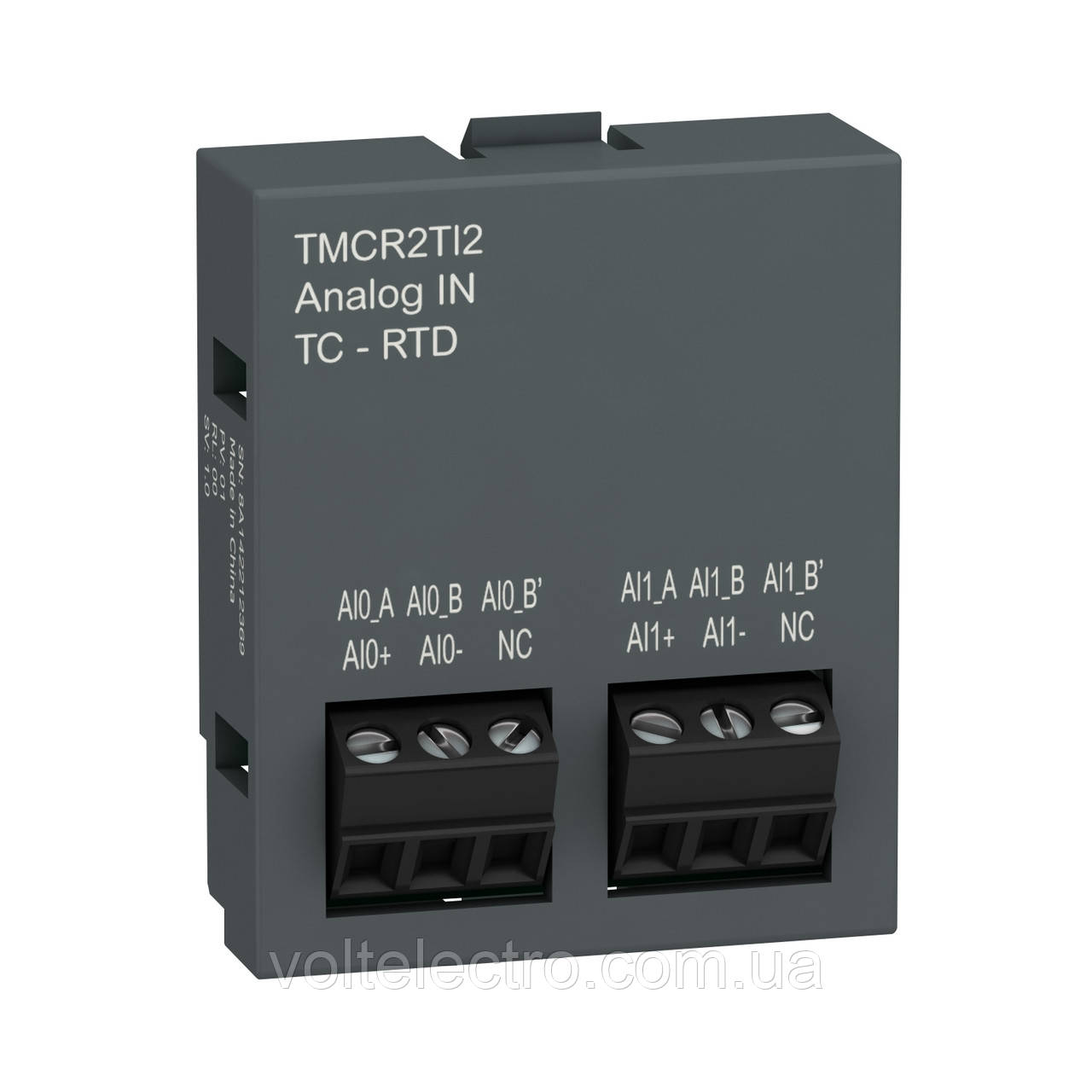

TMCR2T12 картридж M200 2 температурні входи-розширення I/O
3 540,04 ₴3 186,03 ₴
В наявностіОпис
Характеристики
Інформація для замовлення
Product Datasheet
Каталог
Детальний опис: КАРТРИДЖ ДЛЯ М200 2 ТЕМПЕР. ВХ.
Артикул товару: TMCR2TI2
Specifications
| range of product | Easy Modicon M200 |
|---|---|
| product or component type | Analogue input cartridge |
| product compatibility | Easy Modicon M200 |
| analogue input number | 2 |
| analogue input type | Thermocouple - 200...1000 °C with thermocouple J thermocouple - 200...1300 °C with thermocouple K thermocouple 0...1760 °C with thermocouple R thermocouple 0...1760 °C with thermocouple S thermocouple 0...1820 °C with thermocouple B thermocouple - 200...400 °C with thermocouple T thermocouple - 200...1300 °C with thermocouple N thermocouple - 200...800 °C with thermocouple E thermocouple 0...2315 °C with thermocouple C Ni 100/Ni 1000 temperature probe - 60...180 °C Pt 100 temperature probe - 200...850 °C Pt 1000 temperature probe - 200...600 °C |
|---|---|
| analogue input resolution | 14 bits |
| LSB value | 0.1 °C |
| sampling duration | 125 ms, analogue input type: thermocouple 250 ms, analogue input type: temperature probe |
| absolute accuracy error | +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C +/- 0.1 % of full scale for thermocouple C |
| temperature drift | +/- 0.02 %FS/°C |
| repeat accuracy | +/- 0.5 %FS |
| non-linearity | +/- 0.01 %FS |
| cross talk | <= 1 LSB |
| type of cable | Twisted shielded pairs cable |
| electrical connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs |
| maximum cable distance between devices | Twisted shielded pairs cable: <30 m for input |
| insulation | Non-insulated between analogue input and internal logic |
| height | 41 mm |
| depth | 15 mm |
| width | 35 mm |
| net weight | 0.012 kg |
| input impedance | >= 1 MOhm |
| immunity to microbreaks | 10 ms |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 33.0 g |
| Package 1 Height | 3.5 cm |
| Package 1 width | 4.8 cm |
| Package 1 Length | 7.0 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 655.0 g |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
Show more specifications
arrow2_down
| Основні | |
|---|---|
| Виробник | Schneider Electric |
| Країна виробник | Франція |
| Кількість функцій | 2 |
| Тип монтажу | На DIN рейку |
| Тип управління | Автоматичне |
- Ціна: 3 186,03 ₴
