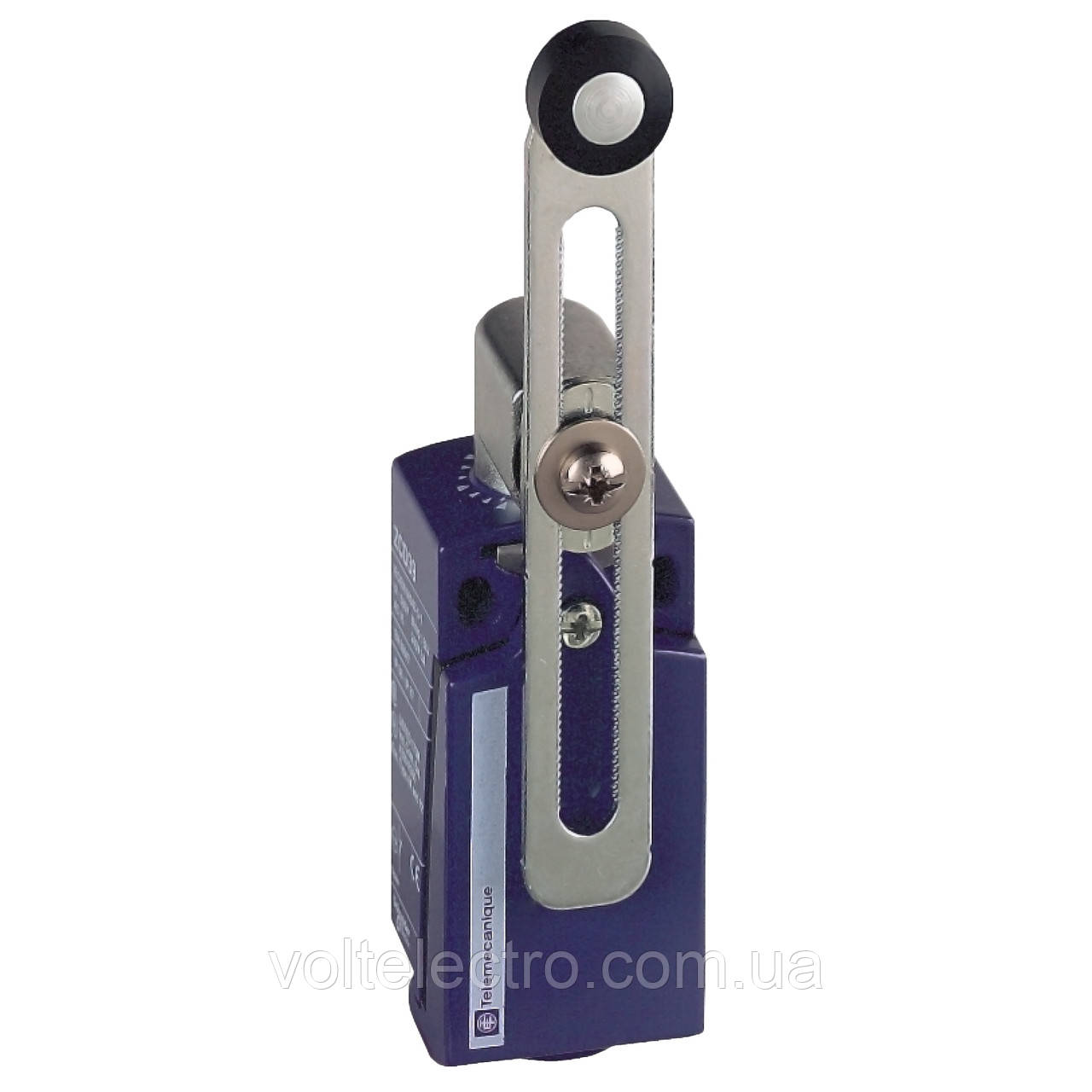

XCKD2145P20 Концевий вимикач, регульований пластиковий ролик
-15%
- В наявності
- Код: XCKD2145P20
1 147,24 ₴
975,15 ₴
+380 (68) 052-00-91
kyivstarВіктор
- +380 (68) 052-00-91viber Для замовлень Viber
повернення товару протягом 14 днів за домовленістю
XCKD2145P20 Концевий вимикач, регульований пластиковий ролик
1 147,24 ₴975,15 ₴
В наявностіОпис
Характеристики
Специфікація
Інформація для замовлення
| range of product | Telemecanique Limit switches XC Standard |
|---|---|
| series name | Standard format |
| product or component type | Limit switch |
| device short name | XCKD |
| sensor design | Compact form A conforming to CENELEC EN 50047 |
| body type | Fixed |
| head type | Rotary head |
| material | Metal |
| body material | Zamak |
| head material | Zamak |
| fixing mode | By the body |
| movement of operating head | Rotary |
| type of operator | Spring return roller lever metal |
| type of approach | Lateral approach, 2 directions |
| number of poles | 2 |
| contacts type and composition | 1 NC + 1 NO |
| contact operation | Snap action |
| tracks | 24/40 mm |
|---|---|
| switch actuation | By 30° cam |
| electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| cable entry | 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 4…8 mm |
| contacts insulation form | Zb |
| positive opening | With |
| positive opening minimum torque | 0.25 N.m |
| minimum torque for tripping | 0.1 N.m |
| maximum actuation speed | 1.5 m/s |
| repeat accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
| contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN 60947-5-1 A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN 60947-5-1 Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60664 6 kV conforming to IEC 60947-1 |
| short-circuit protection | 10 A cartridge fuse, type gG |
| electrical durability | 5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5, DC conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5, DC conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5, DC conforming to IEC 60947-5-1 appendix C |
| mechanical durability | 10000000 cycles |
| width | 31 mm |
| height | 65 mm |
| depth | 30 mm |
| net weight | 0.225 kg |
| terminals description ISO n°1 | (13-14)NO (21-22)NC |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| vibration resistance | 25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to EN 50102 |
| electrical shock protection class | Class I conforming to IEC 61140 Class I conforming to NF C 20-030 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…70 °C |
| protective treatment | TC |
| product certifications | UL CSA CCC |
| standards | CSA C22.2 No 14 IEC 60947-5-1 EN 60204-1 IEC 60204-1 UL 508 EN 60947-5-1 |
| Основні | |
|---|---|
| Виробник | Schneider Electric |
| Країна виробник | Франція |
| Конструктивне виконання приводу | Важіль, регульований по довжині |
| Ступінь захисту IP | 65 |
- Ціна: 975,15 ₴
